Clinical Chemistry - Case Study

Restricted IgG-Kappa and Free Alpha-Heavy-Chain Bands in an Asymptomatic 62-Year-Old Man


DOI: 10.1373/clinchem.2016.269050

Student Discussion

Student Discussion Document (pdf)

Min Yu,1* David E. Bruns,1 Jerry A. Katzmann,2 Lawrence M. Silverman,1 and David L. Murray2

1Division of Laboratory Medicine, Department of Pathology, University of Virginia, School of Medicine and Health System, Charlottesville, VA; 2Department of Laboratory Medicine and Pathology, Mayo Clinic, Rochester, MN.
*Address correspondence to this author at: Division of Laboratory Medicine, Department of Pathology, University of Virginia School of Medicine and Health System, PO Box 800168, Charlottesville, VA 22908. Fax 434-924-2107; e-mail [email protected]

Case Description

A 62-year-old Virginia man in good health was found on routine testing to have a decreased platelet count of 124k/μL (reference interval: 150–450k/μL). There was no evidence of bruising or bleeding, and there was no family history of thrombocytopenia. His weight was stable, and he had no complaints of pain and no gastrointestinal, musculoskeletal, or hematological symptoms. He denied fatigue, fevers, chills, and night sweats. Past medical history included hypothyroidism and chronic obstructive pulmonary disease. Physical examination was unremarkable.

Other laboratory test results included hemoglobin of 13.8 g/dL (reference interval: 14.0 –18.0 g/dL) and mean red-cell volume of 98.1 fL (reference interval: 83.0 –95.0 fL). Plasma potassium was 4.1 mmol/L (reference interval: 3.5– 4.5 mmol/L), calcium 8.8 mg/dL (reference interval: 8.8 –10.5 mg/dL), albumin 4.23 g/dL (reference interval: 3.4 –5.0 g/dL), and alkaline phosphatase 61 U/L (reference interval: 40–150 U/L). Review of a peripheral blood smear found no obvious evidence of pseudothrombocytopenia. Serum ferritin was 53 ng/mL (reference interval: 20–275 ng/mL) and iron saturation was 18% (reference interval: 16%–48%).

Serum protein electrophoresis (Fig. 1A) revealed 2 restricted bands in the γ region, identified by immunofixation (IFE)3 electrophoresis (Fig. 1B) as IgG κ proteins. The combined concentration of these 2 bands was <1.0 g/dL as estimated by densitometry of the stained serum protein electrophoresis gel. IFE (Fig. 1B) also revealed an α-heavy chain band in the α-2 region with no corresponding light-chain band. Immunoglobulin quantification results were as follows: IgA 107 mg/dL (reference interval: 60–263 mg/dL), IgG 1376 mg/dL (reference interval: 694–1618 mg/dL), and IgM 36 mg/dL (reference interval: 60–263 mg/dL). Serum free κ light chain was 3.01 mg/dL (reference interval: 0.33–1.94 mg/dL), and serum free λ light chain was 1.85 mg/dL (reference interval: 0.57–2.63 mg/dL). The κ:λ free-lightchain ratio was 1.6 (reference interval: 0.26 –1.65). Urine IFE showed no monoclonal immunoglobulins.

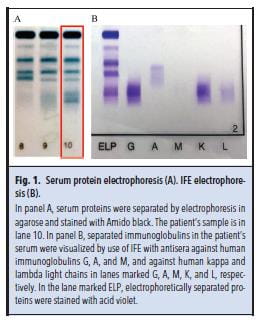

Fig 1. Serum protein electrophoresis (A). IFE electrophoresis (B)

Questions to Consider

  • What tests are appropriate to evaluate asymptomatic mild thrombocytopenia?
  • What are the expected clinical and laboratory findings in alpha-heavy-chain disease?
  • What is the likely explanation of the IFE finding of a free alpha-heavy chain in this patient?
  • What other laboratory tests would you perform to characterize the alpha-heavy-chain band found on IFE?
  • Final Publication and Comments

    The final published version with discussion and comments from the experts appears in the February 2018 issue of Clinical Chemistry, approximately 3-4 weeks after the Student Discussion is posted.
